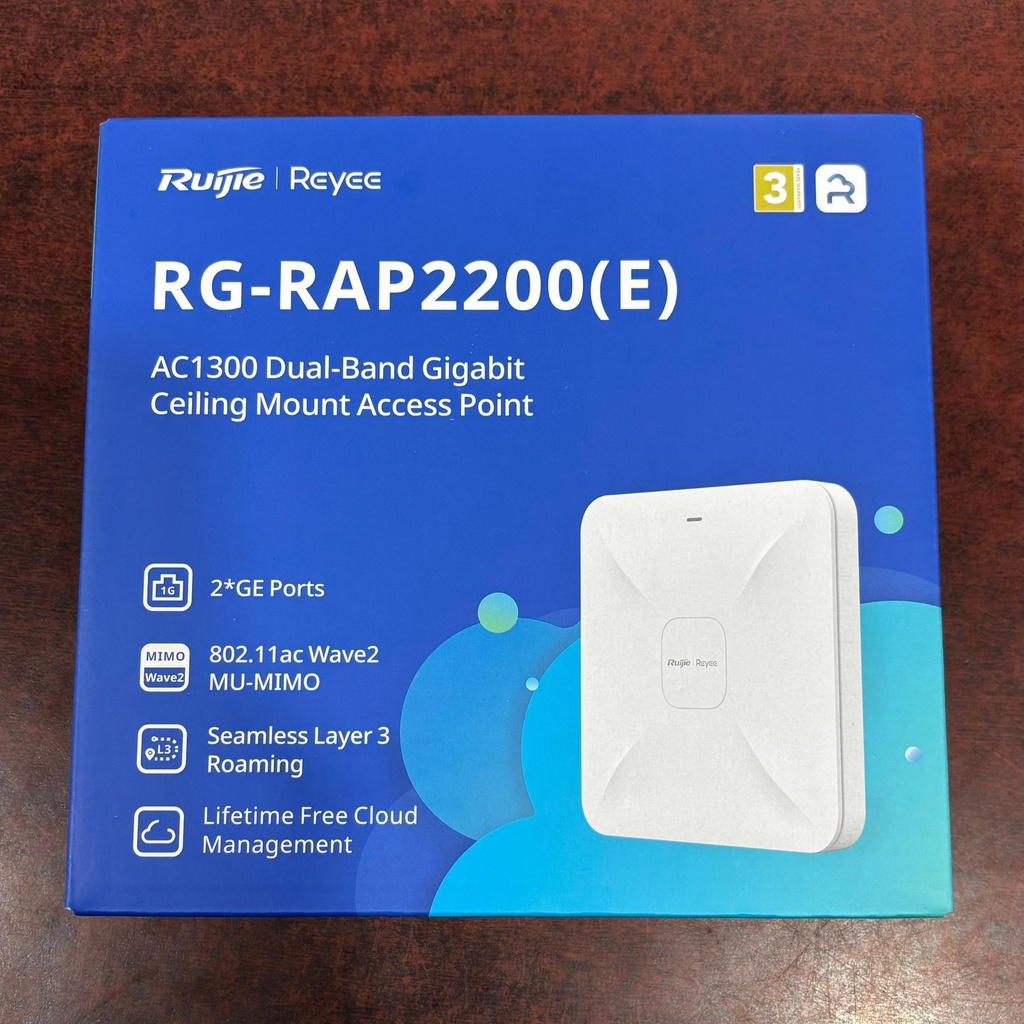

Ruijie RG-RAP2200 (E)

Ruijie Reyee Series RG-RAP2200 Series dual-band ceiling mount AP is a high-performance ceiling mount AP for indoor large-area Wi-Fi coverage scenarios. The device supports 802.3af/at PoE and 12V DC local power supply

Hardware specifications
Radio : Dual-stream dual-band
Protocol : Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n
Operating Bands :
● 802.11b/g/n ：2.4G ~ 2.4835GHz
● 802.11a/n/ac ： 5G：5.150～5.250GHz，5.725～5.850GHz (country specific)
Antenna : Internal antennas（2.4G: 2dBi，5G: 2dBi）
Spatial Streams :
● 2.4G 2x2MIMO
● 5G 2x2MIMO
Max Throughput :
● Up to 400Mbps at 2.4G
● Up to 867Mbps at 5G
● 1.267Gbp per AP
Modulation :
● OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
● DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps
● MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM
Receive Sensitivity :
● 11b: -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps)
● 11a/g: -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps)
● 11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15
● 11ac HT20: -83dBm (MCS0), -57dBm (MCS9)
● 11ac HT40: -79dBm (MCS0), -57dBm (MCS9)
● 11ac HT80: -76dBm (MCS0), -51dBm (MCS9)
Maximum Transmit Power :
● 5.725～5.850GHz：≤20dBm (EIRP)
● 5.150～5.250GHz：≤20dBm (EIRP)
● 2.4～2.4835GHz：≤20dBm (EIRP)
Adjustable Power : 1dBm
Service Ports :
● 2 10/100/1000Base-T Ethernet ports
● PoE/LAN1 port supports PoE
Management Port : NA
LED Indicator : NA
Power Supply : Single indicator (green light)
Power Consumption :
● Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory)
● 802.3af/802.3at PoE
Environment :
● ≤ 12.95W
● Operating temperature: 0°C～40°C
● Storage temperature: -40°C～70°C
● Operating humidity: 5％～95％（non-condensing)
Installation : Storage humidity: 5％～95％（non-condensing）
Safety Standard : GB4943, IEC 62368-1
EMC Standard : GB9254，EN301 489，EN50155，EN50121，EN55032，EN61000，EN55035
Vibration Standard : IEC61373
Radio Standard : EN300 328, EN301 893
MTBF : >250000H
