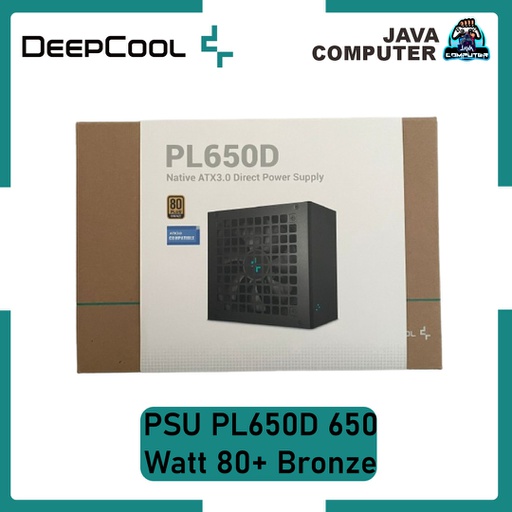

Deepcool PSU PL650D 650 Watt 80+ Bronze
Type : ATX12V V2.4
Product Dimensions : 150×140×86mm (W x L x H)
80PLUS Certifications : Bronze
Fan Size : 120mm
Fan Bearing : Hypro Bearing
Topology : Active PFC+DC to DC
Capacitors : Taiwan capacitor
Power Good Signal : 100-150ms
Hold Up Time : =16ms(80% Load)
Efficiency : =85% Under Typical Load(50% Loading)
Protection : SCP,OPP,OTP,OVP,OCP,UVP
Operation Temperature : 0 - 40 °C
Regulatory : CB/CE/FCC/CAN ICES-003(B)/NMB-003(B)/ TUV-RH/CCC/UKCA/EAC/RCM/BIS
Erp Regulation : ErP 2013
MTBF : 100,000 Hours
EAN P/N : 6933412715177 R-PK650D-FA0B-EU
Main Power Connector 24 (20+4)Pin x1
EPS 12V Connector 8 (4+4)Pin x1
PCI-E (6+2)Pin x4
SATA x7
4Pin (molex) Peripheral x4
